BMW Valvetronic Eccentric Shaft Sensor Replacement Kit - 11377524879KT

BMW Valvetronic Eccentric Shaft Sensor Replacement Kit - 11377524879KT

$574.99 CAD

VDO SKU: 11377524879KT

Earn 1 Point on this purchase. Learn more
Description Availability

11377524879KT

Description

Details

SKU:
KIT-11377524879KT
Quality:
OE

OE Numbers

N/A

MFG Numbers

S119565001Z, 523.000, 572300, 584.950

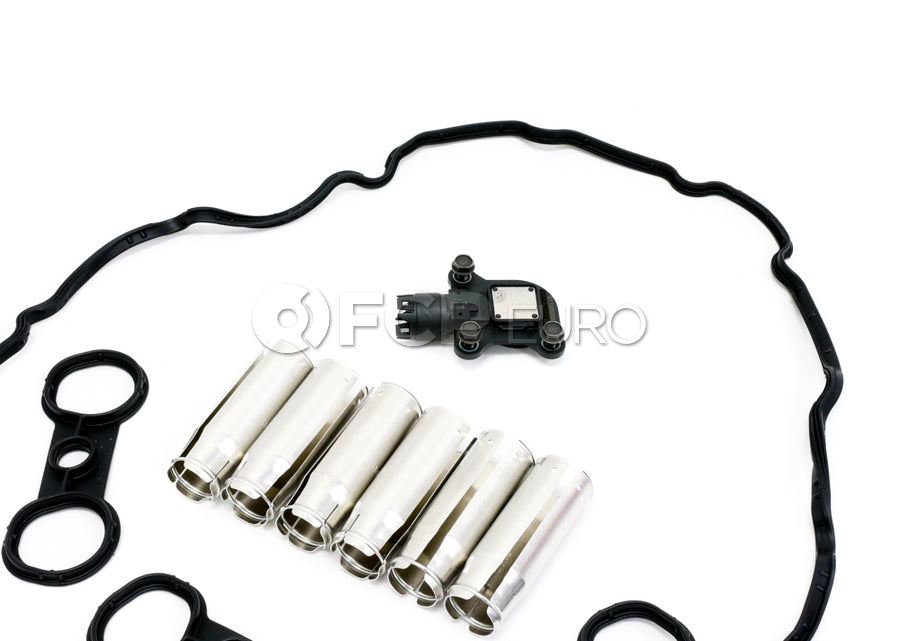

This Kit Includes

Qty Part SKU Brand

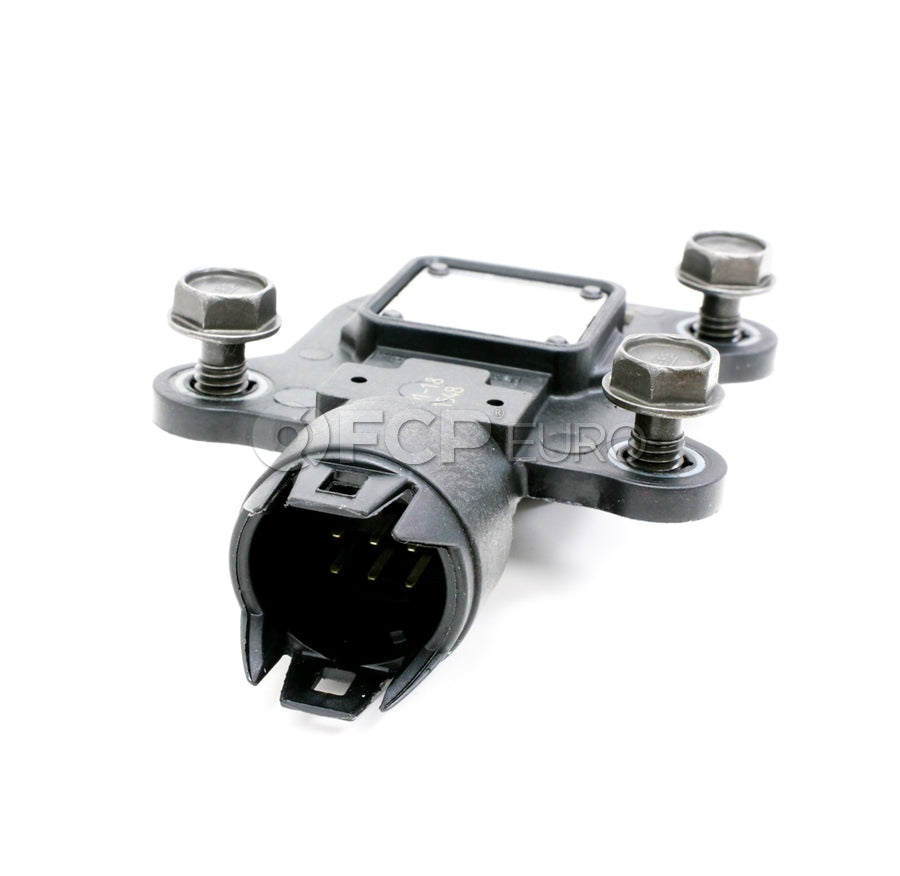

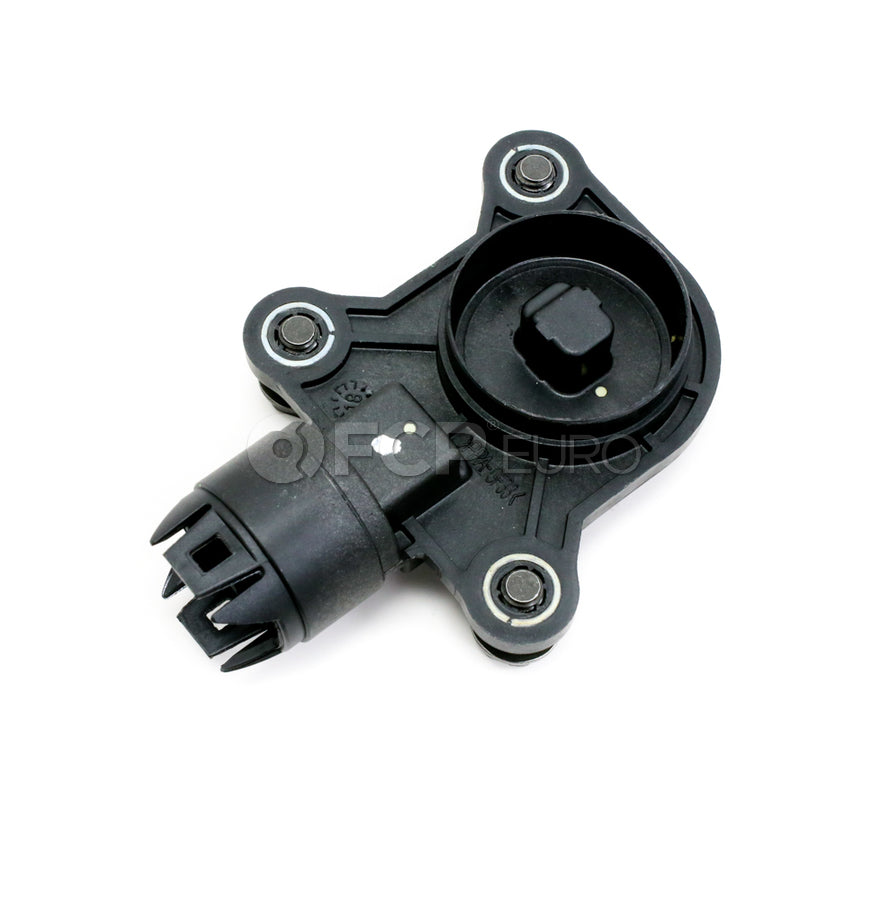

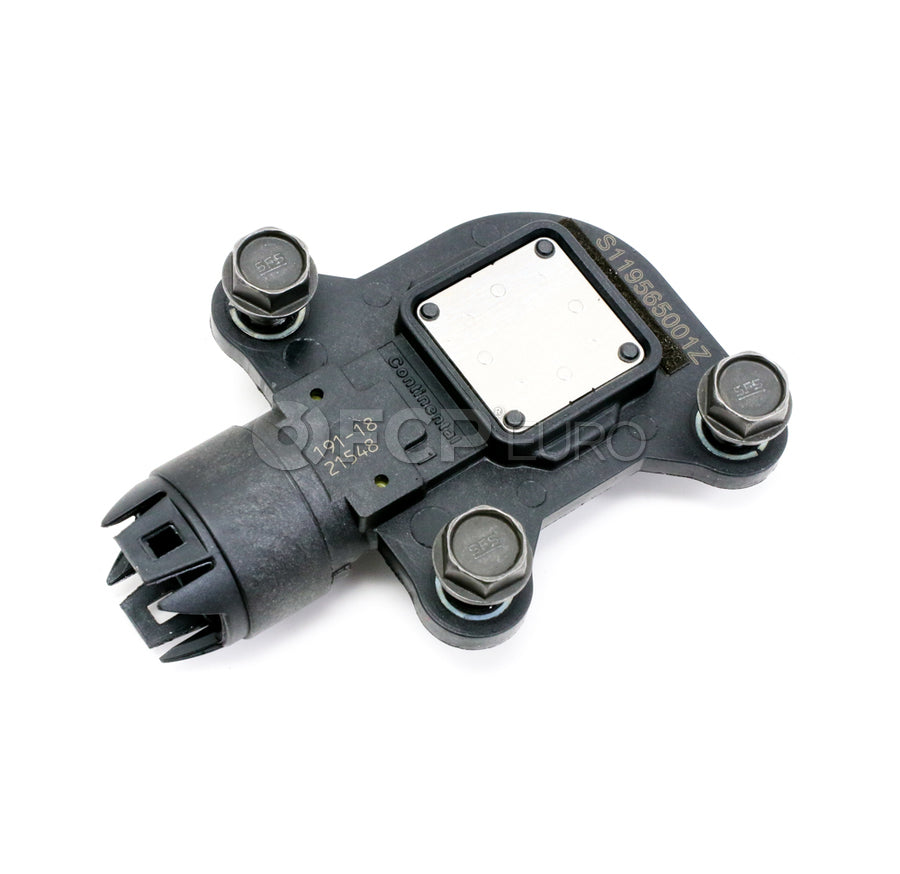

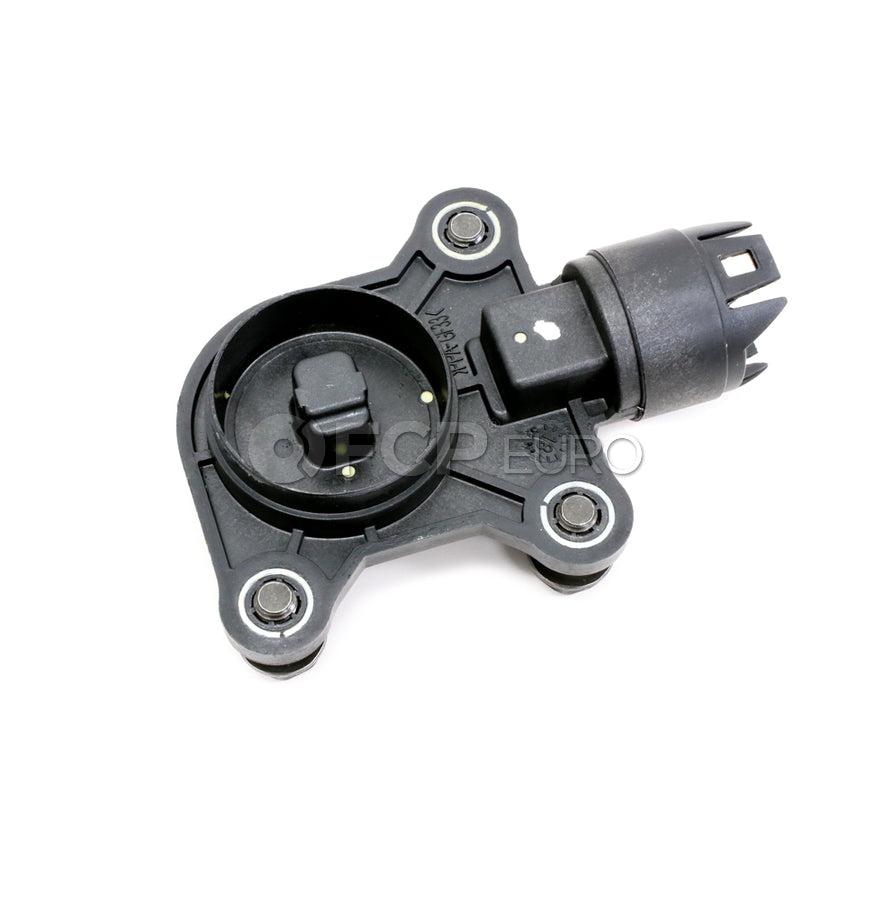

1 Engine Variable Timing Eccentric Shaft Sensor VDO-S119565001Z Vdo
6 Spark Plug Tube Seal BMW-11127575422 Genuine bmw
1 Engine Variable Timing Eccentric Shaft Sensor Seal ELR-523000 Elring logo
1 Engine Variable Valve Lift Eccentric Shaft Actuator Seal ELR-572300 Elring logo

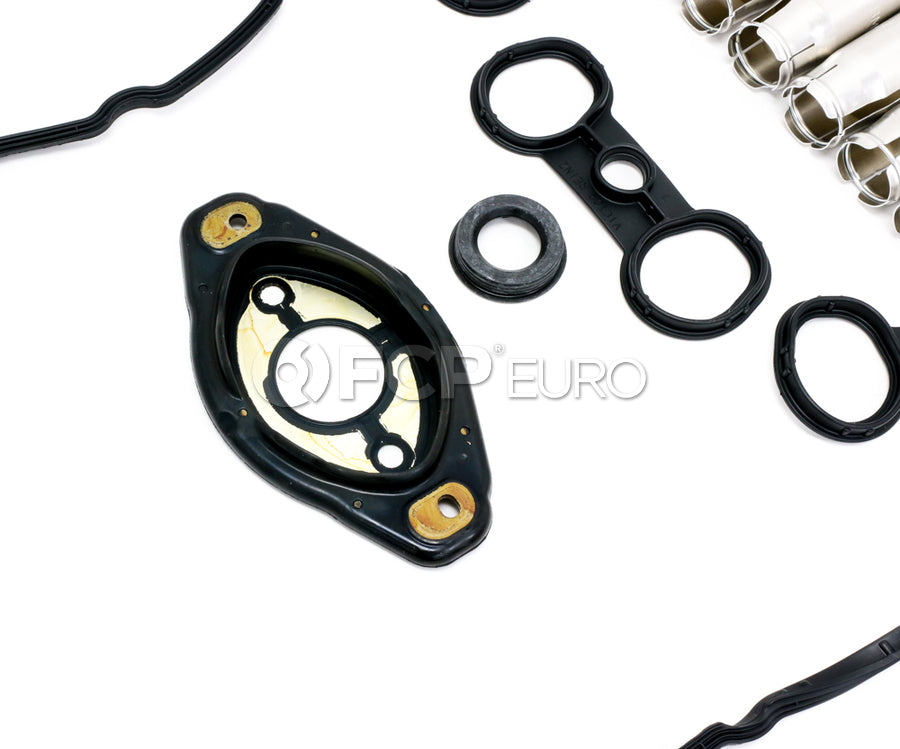

1 Engine Valve Cover Gasket Set 584950 VR

Product Information

Kit includes an OE replacement VDO eccentric shaft sensor along with replacement valve cover gaskets, spark plug tube seals, and other required parts for installing a new Valvetronic sensor

The Valvetronic sensor measures the position of the eccentric shaft in the cylinder head which controls the variable valve lift system on the intake side of the engine. The Valvetronic system essentially controls the engine speed by varying the lift of the intake valves. If this sensor fails it can cause an erratic idle, stalling, and poor power delivery. To replace this sensor you must remove the valve cover which will involve replacing all of the associated gaskets and seals.

Please note: The new Valvetronic sensor includes encapsulated bolts. They must be torqued to 10Nm (88 in lbs). Chemical sealants are not required when installing a new valve cover gasket on an N52N/N51 engine. The torx screws on for the Valvetronic actuator are torqued to 10Nm (88 in lbs). The screws on the perimeter of the valve cover are torqued to 9Nm (80 in lbs). N51 and N52N engines use a plastic valve cover and DO NOT require new valve cover fasteners.

About VDO

VDO is a division of the Continental Corporation's automotive group and it has been in the automotive parts industry for over 80 years. VDO is an OEM (original equipment manufacturer), supplying instrumentation, sensors, control systems, actuators, screen washers and audio systems. They have a thriving aftermarket business where they make high quality repair and replacement parts to OEM specifications.

Fits These Cars

BMW 328i

  • 2007 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2007 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2007 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2007 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52
  • 2008 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2008 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2008 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2008 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52
  • 2009 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2009 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2009 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2009 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52
  • 2010 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2010 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2010 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2010 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52
  • 2011 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2011 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2011 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2011 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52
  • 2012 BMW 328i 3.0L L6 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2012 BMW 328i 3.0L L6 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93
  • 2012 BMW 328i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon, Chassis: E91
  • 2013 BMW 328i 3.0L L6 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52, Chassis: E92
  • 2013 BMW 328i 3.0L L6 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Convertible, Engine code: N52, Chassis: E93


BMW 328xi

  • 2007 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A
  • 2007 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52B30A
  • 2007 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2008 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A
  • 2008 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52B30A
  • 2008 BMW 328xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon


BMW Z4

  • 2007 BMW Z4 Coupe 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    From 10/2006
  • 2007 BMW Z4 Roadster 3.0i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    From 10/2006
  • 2007 BMW Z4 Roadster 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    From 10/2006
  • 2008 BMW Z4 Roadster 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2008 BMW Z4 Roadster 3.0i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2008 BMW Z4 Coupe 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2009 BMW Z4 sDrive30i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2010 BMW Z4 sDrive30i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2011 BMW Z4 sDrive30i Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW X3

  • 2007 BMW X3 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2008 BMW X3 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2009 BMW X3 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2010 BMW X3 Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2011 BMW X3 xDrive28i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2012 BMW X3 xDrive28i Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW X5

  • 2007 BMW X5 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2008 BMW X5 3.0si Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2009 BMW X5 xDrive30i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2010 BMW X5 xDrive30i Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW 528i

  • 2008 BMW 528i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2009 BMW 528i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2010 BMW 528i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2011 BMW 528i Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW 528xi

  • 2008 BMW 528xi Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW 128i

  • 2008 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A
  • 2009 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A
  • 2010 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A
  • 2011 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A
  • 2012 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A
  • 2013 BMW 128i Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Engine code: N52B30A


BMW 528i xDrive

  • 2009 BMW 528i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
  • 2010 BMW 528i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit


BMW 328i xDrive

  • 2009 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52B30A
  • 2009 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2009 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A
  • 2010 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52B30A
  • 2010 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2010 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A
  • 2011 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Sedan, Engine code: N52B30A
  • 2011 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon
  • 2011 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A
  • 2012 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Wagon, Chassis: E91
  • 2012 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A, Chassis: E92
  • 2013 BMW 328i xDrive Engine Variable Valve Lift Eccentric Shaft Sensor Kit
    Body: Coupe, Engine code: N52B30A, Chassis: E92
