DS080151DS
OVERVIEW

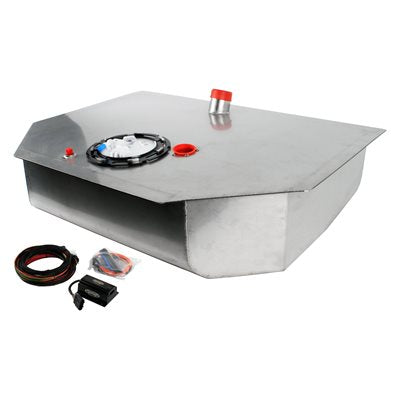

The Detroit Speed 1000 series fuel tank is specifically designed for racing vehicles with 1000 HP using a dual internal fuel pump system with an electronic controller and corner pickups built into the tank to eliminate the possibility of fuel starvation during extreme cornering without having a full tank. Dual 190Ltr/Hr Pumps (Same Basic dimensions as 5th Gen module), VaporWorx Pulse Width Modulation (PWM) Kit Included, 19 Amp Draw, 80.3 GPH @ 60psi, 960HP Normally Aspirated and 800HP Supercharged.
Features:
- Reliable Fuel Delivery Below 1/2 Tank
- No Additional Fuel Filter Needed
- Less Heat At Fuel Tank and Pump
- Speed Control to Run Pump Based on Demand
- Plug and Play Installation
- Corner Pickups for Reliable Fuel Delivery with less than 1 Gallon
- Single Fuel Line for Ease Of Plumbing
- No External Regulator Needed
- Less Noise
- Longer Pump Life
- Modules Readily Available at GM Dealer
- Fuel System Output Matched to Engine Requirements
SPECS
| Application | Racing with Corner Pickups |
|---|---|
| Brand | Detroit Speed |
| Color | Silver |
| Emission Code | 3 |
| Finish | Natural |
| Forced Induction HP@60PSI | 800 |
| Free Flow GPH | 80.3 |
| Free Flow LPH | 2 x 190 |
| Fuel Pump Included | Yes |
| Fuel Pump Type | GM CTSV |
| Fuel Sending Unit Ohms | Sold Separetely |
| Fuel System Type | EFI |
| Fuel Tank Width | Narrowed |
| Gallon Capacity | 16 |
| Material | Stainless Steel |
| Naturally Aspirated HP@60PSI | 960 |
| New Straps Included | No |
| Product Type | Fuel Tank |
| UPC | 090127190371 |
| California Proposition 65 Required | Yes |
| Part Number | 080151DS |
