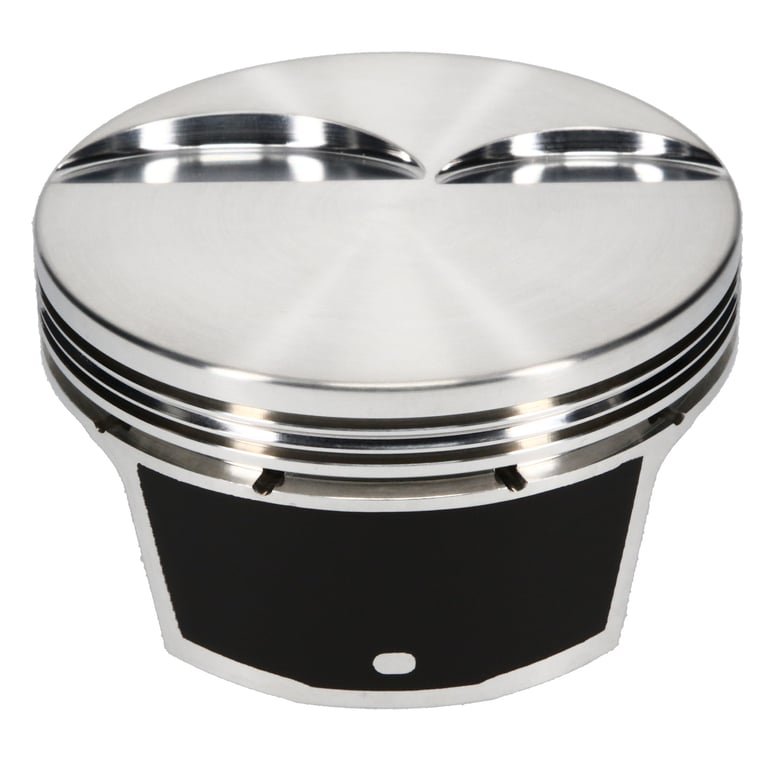

JE Pistons Chevrolet LS Gen 3/4 3.898 in Bore - Set of 8

SKU: 321241 Piston Series
JE Pistons
Cylinder Head
LSX/L92 12 DEG
Bore Diameter
3.898 IN
Piston Head Type
Dish
Compression Height
1.315 IN
Piston Volume
-19.90 CC
Piston Material
2618
Piston Quantity
8
Forging Type
FSR
Piston Average Weight
421 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0600 IN
Second Compression Ring Thickness
0.0600 IN
Oil Ring Thickness
0.1175 IN
Wrist Pin Part Number
927-2250-15-51C
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.170 IN
Wrist Pin Retainer Included
Yes
Ring Set Thickness
1.50 MM x 1.50 MM x 3.00 MM
