180-B

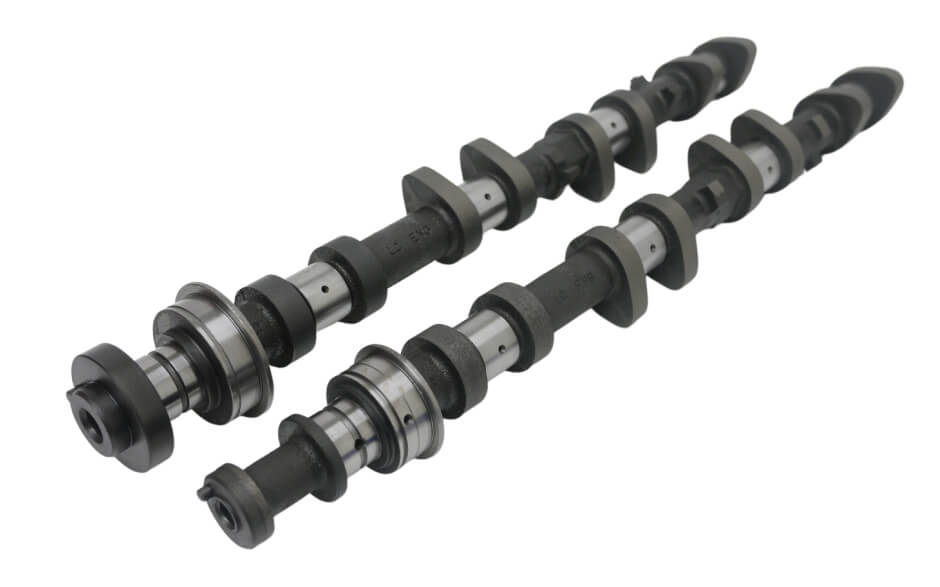

272°/278° Stage 2 performance cams for turbocharged 3RZ-FE engines found in the Hilux and Tacoma. Suits 58mm-70mm turbo. Great for desert sand dune racing and roll racing. Increased mid-range to high rpm power. Kelford Cams recommend valve spring KVS180-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2RZFE/3RZFE
180-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.20mm
EXHAUST:
10.20mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.95mm
EXHAUST:
9.95mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
236°
EXHAUST:
240°
TIMING AT
1.00mm VALVE LIFT
IVO:
8° BTDC
IVC:
48° ABDC
EVO:
58° BBDC
EVC:
2° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
1.83mm
EXHAUST:
1.30mm
