KPRO4-02-04RSX

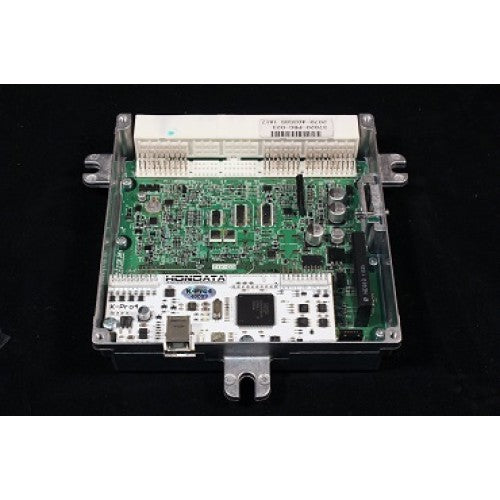

The K-Series Programmable ECU (K-Pro) consists of a hardware modification to any K-Series ECU, plus Windows software which allows you to re-program the ECU and datalog sensors.
Warning
Within the USA this product is legal only for racing vehicles which may never be used upon a public highway.
Main features:
- Fits inside the ECU
- Designed and assembled in USA
- USB connection for speed and compatibility
- KManager Windows based software for parameter & table editing, calibration uploading and datalogging.
- Many built in calibrations for common engine combinations
- Built in datalogging to a laptop
- On board datalogging memory (8 MB memory, 10-215 minutes datalogging)
- Adjustment for different sized injectors, with overall fuel trim.
- Configurable for any MAP sensor (to 5 Bar and above)
- TPS based table lookup for ITBs
- Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.
- Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
- Launch control with anti-lag
- Three multi purpose outputs for nitrous control or similar.
- Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
- PWM output for boost control
- Bluetooth support and Hondata Mobile app.
- Ethanol sensor input for flex fuel capability.
- Alternate speed sensor input.
- Dash output serial & CAN streams.
- Live tuning and auto tune.
KManager editing software features:
- High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.
- Injector size fuel trim
- Fuel trim for starting, throttle tip in and individual cylinder trim
- Rev limiter with fuel cut
- Launch control with anti-lag
- Adjustable VTEC window with load and throttle control
- Adjustable idle speed
- MAP sensor type and calibration
- Adjustable boost cut with hot and cold settings
- Closed loop control
- Air temperature compensation
- Fuel and ignition correction based on gear
- Closed loop
- Three general purpose outputs for nitrous control, quad boost control or similar
- On board datalogging trigger conditions
| Restriction | |
| EPA/CARB status (USA) | Competition vehicles only |
| Vehicle | |
| Model List | Civic Si 2002-2005 Civic Type R 2001-2005 RSX Type S 2002-2004 RSX Base 2002-2004 Integra Type R 2002-2006 |
| Transmission | MT |
| ECU | |
| Part Number | PRB (A01-A12 & 305) PND (A01-A09) PNF PRA PRC (JDM DC5 Integra Type R) PRD PPA (A##) PPL (A##) |
- Fits inside the ECU
- Designed and assembled in USA
- USB connection for speed and compatibility
- KManager Windows based software for parameter & table editing, calibration uploading and datalogging.
- Many built in calibrations for common engine combinations
- Built in datalogging to a laptop
- On board datalogging memory (8 MB memory, 10-215 minutes datalogging)
- Adjustment for different sized injectors, with overall fuel trim.
- Configurable for any MAP sensor (to 5 Bar and above)
- TPS based table lookup for ITBs
- Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.
- Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
- Launch control with anti-lag
- Three multi purpose outputs for nitrous control or similar.
- Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
- PWM output for boost control
- Bluetooth support and Hondata Mobile app.
- Ethanol sensor input for flex fuel capability.
- Alternate speed sensor input.
- Dash output serial & CAN streams.
- Live tuning and auto tune.
KManager editing software features:
- High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.
- Injector size fuel trim
- Fuel trim for starting, throttle tip in and individual cylinder trim
- Rev limiter with fuel cut
- Launch control with anti-lag
- Adjustable VTEC window with load and throttle control
- Adjustable idle speed
- MAP sensor type and calibration
- Adjustable boost cut with hot and cold settings
- Closed loop control
- Air temperature compensation
- Fuel and ignition correction based on gear
- Closed loop
- Three general purpose outputs for nitrous control, quad boost control or similar
- On board datalogging trigger conditions
Required ECU to be sent in and soldered for $100 extra.
