Boundary 11-14 Ford Raptor 6.2L Billet Gear Oil Pump Assembly

Description

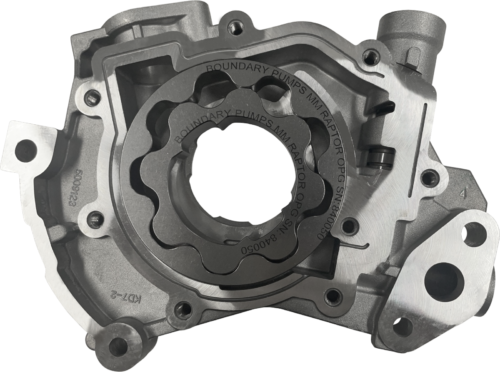

The Raptor Billet Oil Pump Assembly uses our proprietary race-prepared housing, fitted with our custom Billet Oil Pump Gears. We use our proprietary gerotor profile to produce more volume to safely deliver it beyond 10,000 RPM.

All Stage 1 pumps undergo the following:

• All parts undergo ultrasonic, air blast, and hand inspection.
• Pump is power hand de-burred inside and out.
• Gear set is cut in-house from 4140 chromoly steel billet.
• Parts are blue-printed and issued with specification sheet.

Boundary oil pump gears are 100% manufactured in our Dallas, Texas, production facility. We start by quenching our chromoly billets from extreme heat and then temper it to a tough indestructible core. After machining, we apply our ColdFlow surface hardening process and complete it to a Mirror Finish. What does all this give you? It gives you a pump with stability over 9000 RPM, proven in excess of 1500whp, with higher efficiency, less friction, and backed by one of the industry’s best warranties.

Oil Pump Gear Features

• Mirror Finished and Surface Hardened
• Surface Ground gears for the ultimate in fitment and performance
• Indestructible core
• Inner and outer gear set included
• Unique race-inspired gerotor design
• Each set hand, machine, and hardness inspected with Blueprinting Report

Part#MM-RAPTOR-S1 Fits:

• Ford Raptor 6.2L 2011-2014
