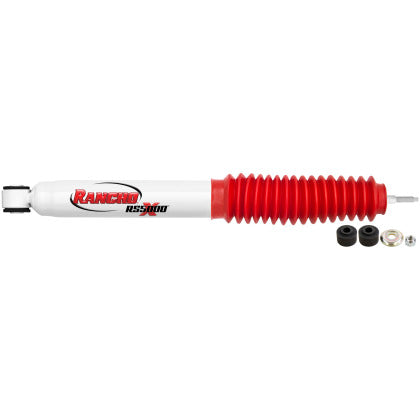

RANCHO RS5000X SHOCK ABSORBER: 2005–2020 F-250/F-350

RS55042

The core of this new and innovative shock from Rancho is the unique rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of the vehicle on and off-road. The Rancho RS5000X series design includes progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock’s travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle, or similar activity, Rancho’s Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on or off-road driving activities like washboarding or when traveling a rough fire road, the early flow of fluid helps to minimize a “rough” ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.

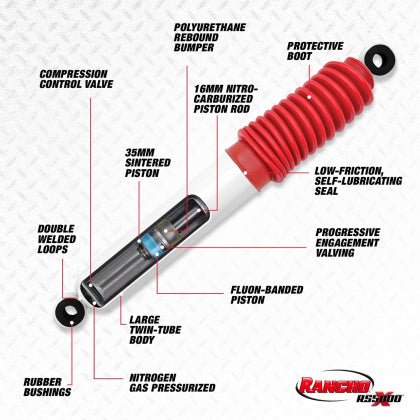

Features:

•  Progressive engagement valving (compression cycle)
• Tuned compression control valve
• Gas pressurization of shock
• Black natural rubber bushings
• Glass-filled Fluon banded piston
• Rebound bumper
• Protective boot
• Low-friction, self-lubricating seal

Application: 2005–2020 F-250/F-350
