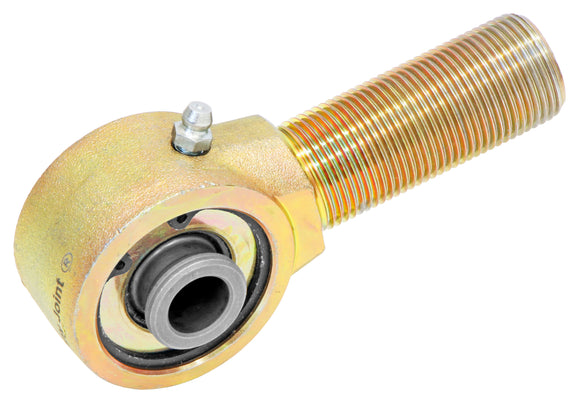

RockJock Johnny Joint Rod End 2in Narrow Forged 1in-14 RH Threads 1.600in x .510in Ball

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 right hand threads on the shank, and a 1.600 in. mounting width ball with a .510 thru bolt hole. Finished in gold zinc plating.
