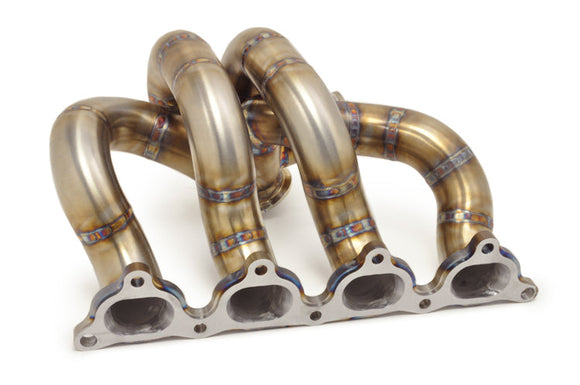

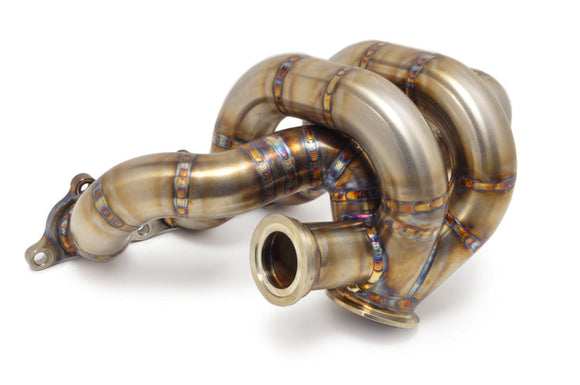

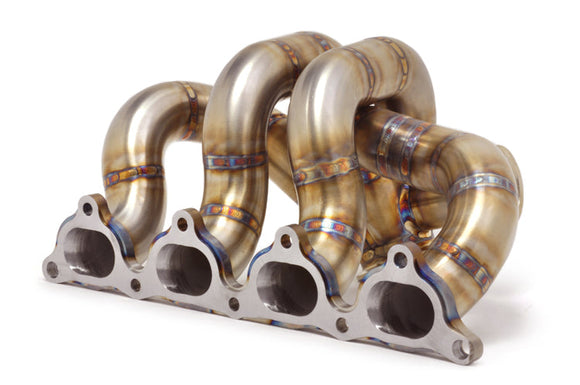

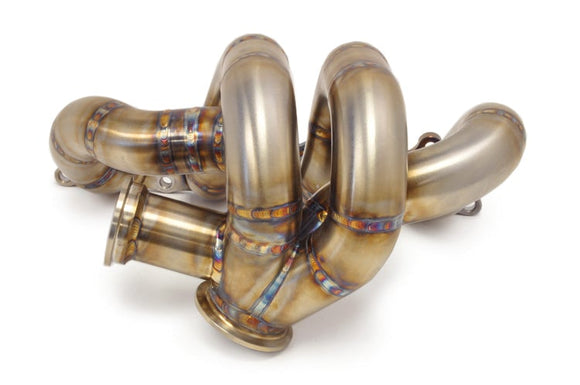

STM Evo 4-9 Forward-Facing V-Band Turbo Exhaust Manifold

$2,449.99 CAD

STM SKU: STM-MANI-EVO49-FF-VBAND-G2

Ceramic Coating:: None
Select Turbo Flange Style:: Garrett Gen 2 V-Band

Earn [points_amount] when you buy this item.

The STM Forward Facing Turbo V-Band Exhaust Manifold for the Evo 4/5/6/7/8/9 is designed for Garrett (TiAL) or PTE V-Band housings and flanged for a TiAL 44mm MVR wastegate. Tig-welded and back-purged, the STM team hand-fabricates each and every piece in-house. Available with high temp 2000°F ceramic coating.

Vehicle Fitment:
1996-2006 Mitsubishi Evolution IV V VI VII VIII IX
• Fits with Garrett Gen 2 V-Band
• Fits with Garrett/TiAL V-Band
• Fits with PTE V-Band
• Flanged for TiAL 44mm MVR Wastegate
• Requires custom downpipe/o2 housing or purchase a full Hot Parts Kit below

Install Notes:
This includes just the exhaust manifold. If you are a fabricator or have your own shop, you can custom make the extra parts you'll need. If you are looking for a full hot parts kit to bolt on they are available here:
 Evo 4/5/6 Hot Parts Kit
 Evo 7/8/9 Hot Parts Kit

Features:
• Hand Fabricated
• Tig-Welded
• Back-Purged
• Flanged for TiAL 44mm MVR Wastegate
• Mild Steel Head Flange to Prevent Pulling Out Studs
• Schedule 10 1.5" Stainless Steel Runners

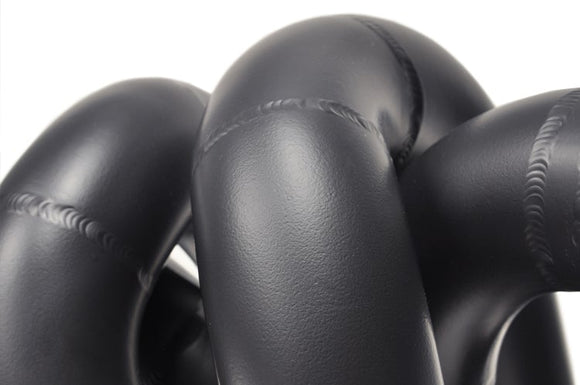

• High temp ceramic coating is available (2000°F)
• This manifold style for Evo 4-9 sits a little lower under the hood than the other 7/8/9 manifolds to also clear the 4/5/6

Made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

Shipping Times: 2-4 Weeks
One of a kind and built to order. Each manifold is hand built and unique, so the runner design may vary slightly from piece to piece. Ceramic coating will add 2 weeks to shipping time.

Includes:
(1) STM Manifold

Don't forget your nuts!
Evo 4-9 OEM Stud and Nut Kit
