UMI Performance 78-88 GM G-Body Control Arm Reinforcements/Frame Braces

3028-R

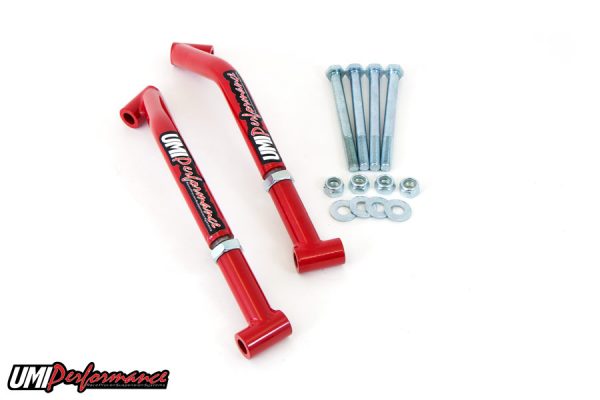

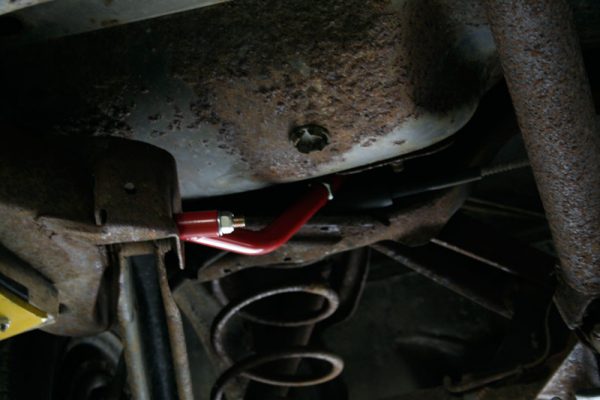

Trailing arm mount braces are designed to reinforce the rear upper and lower front control arm mounts on your 1978-1988 GM G-Body vehicle. The more power your ride makes the better chance of bending or breaking the rear control arm mounts. These tubular reinforcements tie the upper and lower rear control arm mounts together for added strength and performance. The UMI Performance braces are bent to contour the floor of the vehicle, unlike some competitor’s designs these reinforcements do not require the floor to be dented or pounded for correct fitment. Control arm braces are manufactured from DOM steel; TIG welded and feature adjustment for a perfect fit on all 1978-1988 G-Body’s. This kit includes new longer Grade 8 bolts, lock nuts and washers for a 100% bolt in installation.

INSTALL NOTE: THE 3028 FRAME BRACES MAY REDUCE MUFFLER CLEARANCE, AS THEY ADD DISTANCE TO THE INSIDE LOWER ATTACHMENT POINT. TAKE CARE WHEN ORDERING IF YOU HAVE LARGE MUFFLERS.

3028 Installation Instructions
