VTT Billet / Silicone N54 coolant hose kit

Description

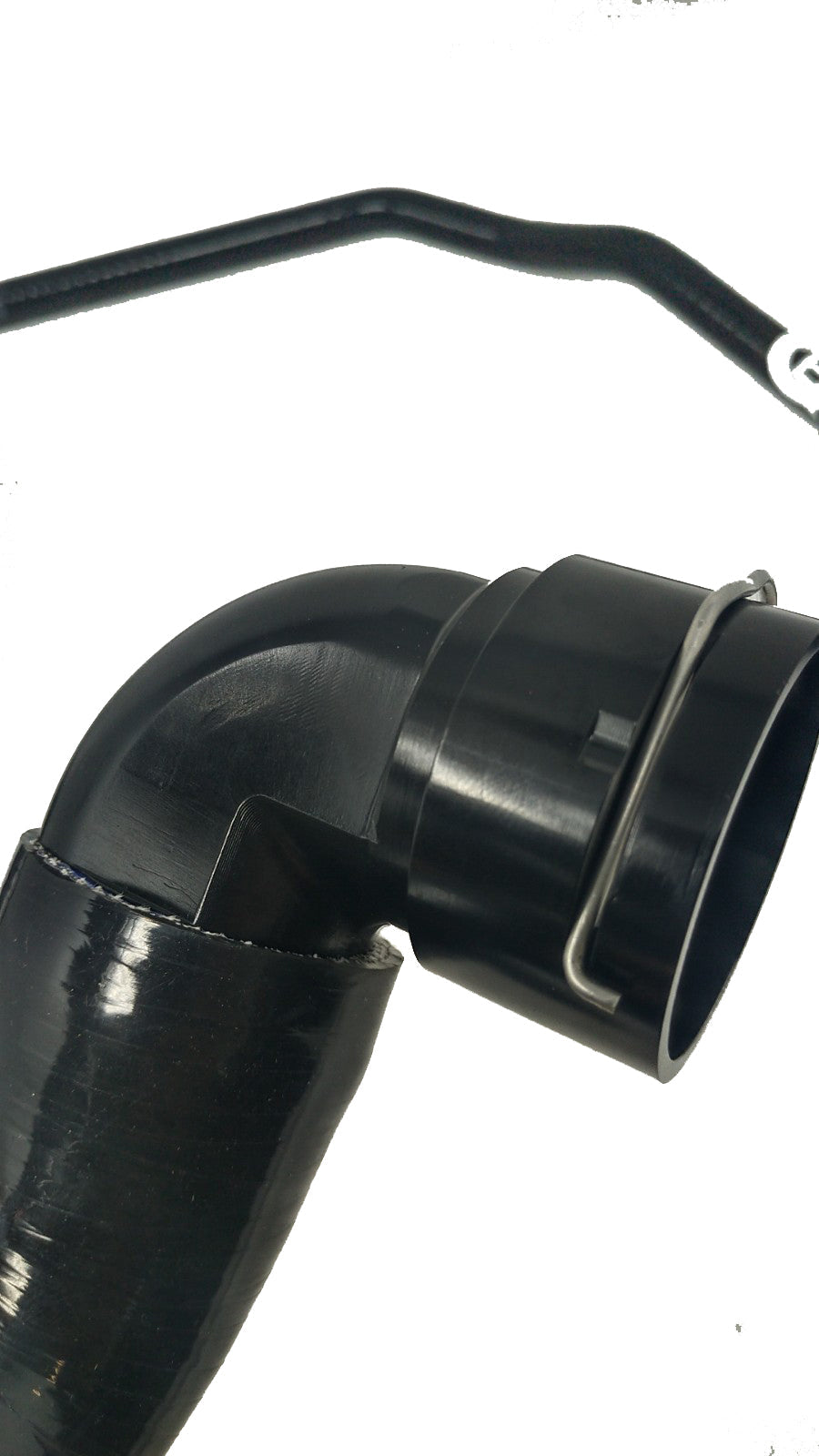

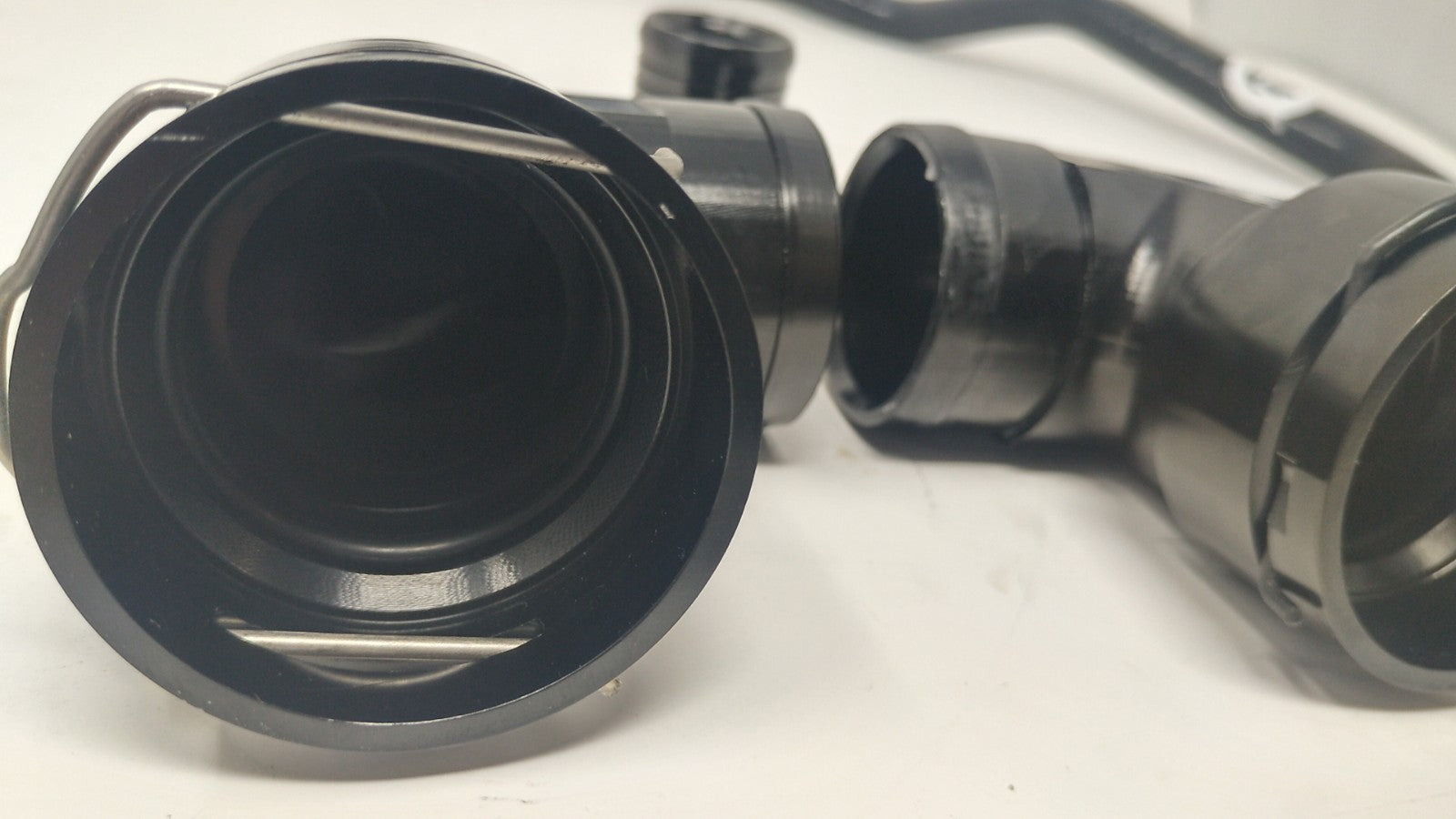

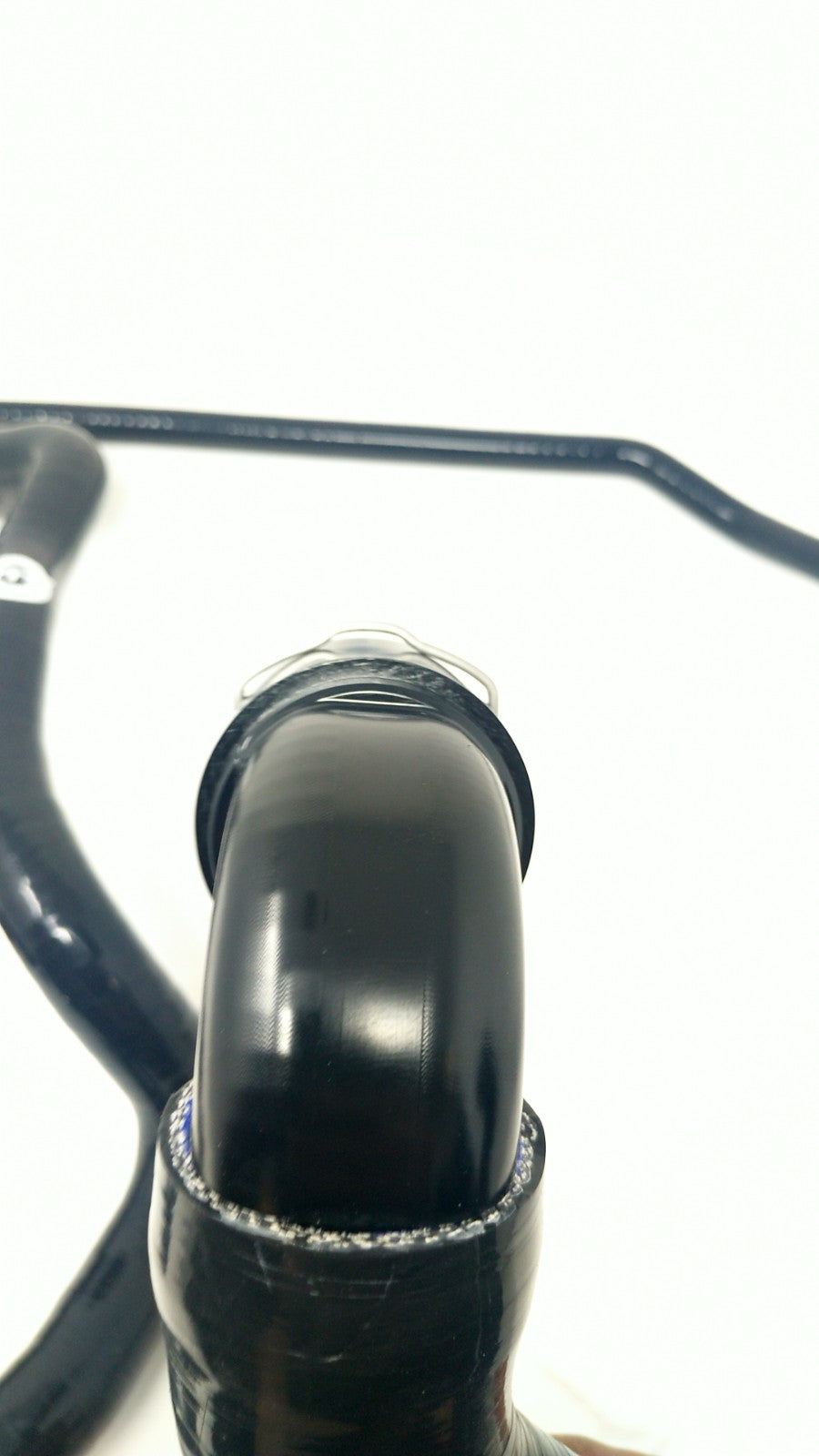

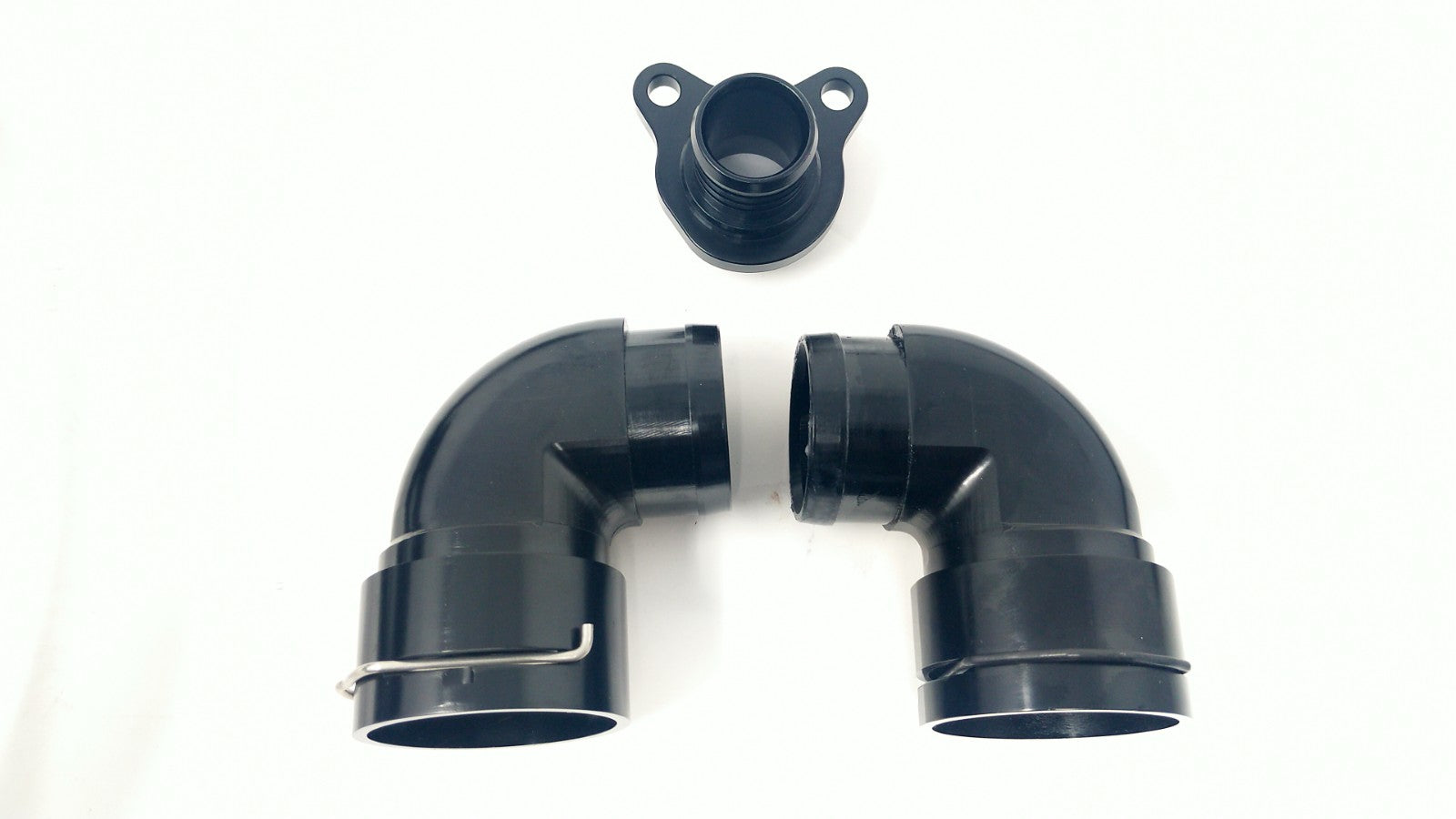

VTT is proud to announce our N54 Billet/Silicone coolant hose upgrade kit! The factory plastic coolant connectors are prone to breaking over time, and the hoses are just your standard run of the mill coolant hose. We wanted to provide an upgrade to both areas. What we came up with is Billet 6061-T6 connectors anodized black for corrosion resistance, and 6 ply silicone molded silicone hoses in the factory shapes. Currently, we only have the sample set in which are black (the logo is going to change as well) but we will be offering the hoses in Black with blue liner, Red with Black Liner, and Blue with Red liners. Custom colors will be available at an additional cost and lead time.

Currently, these fit most all N54 applications E92, E90, E82, E60, etc. They may not fit some models, we have not test fit on all models. If you have a specific model and which to have us make your hoses let us know!

We will be offering them in a variety of ways.

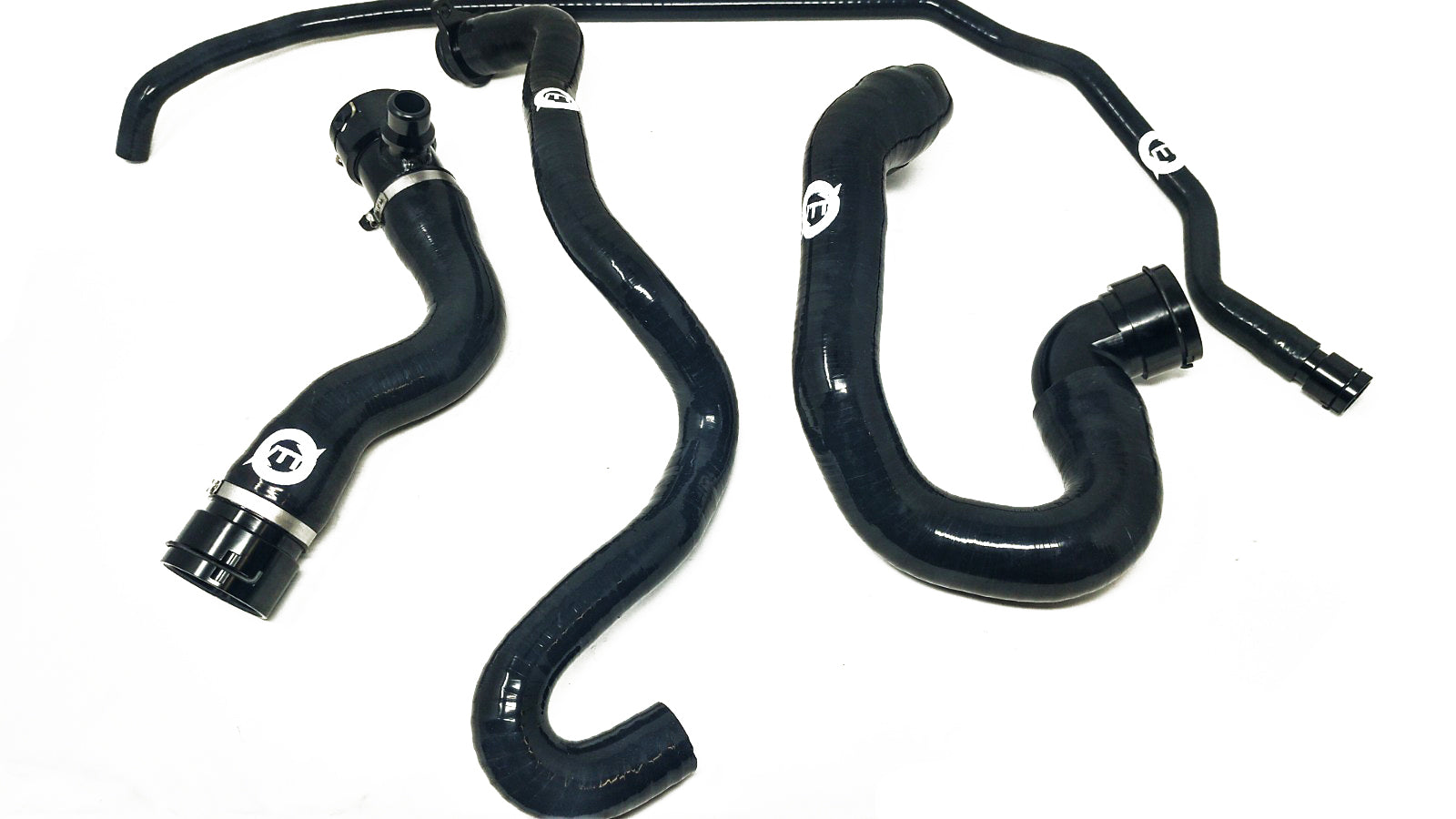

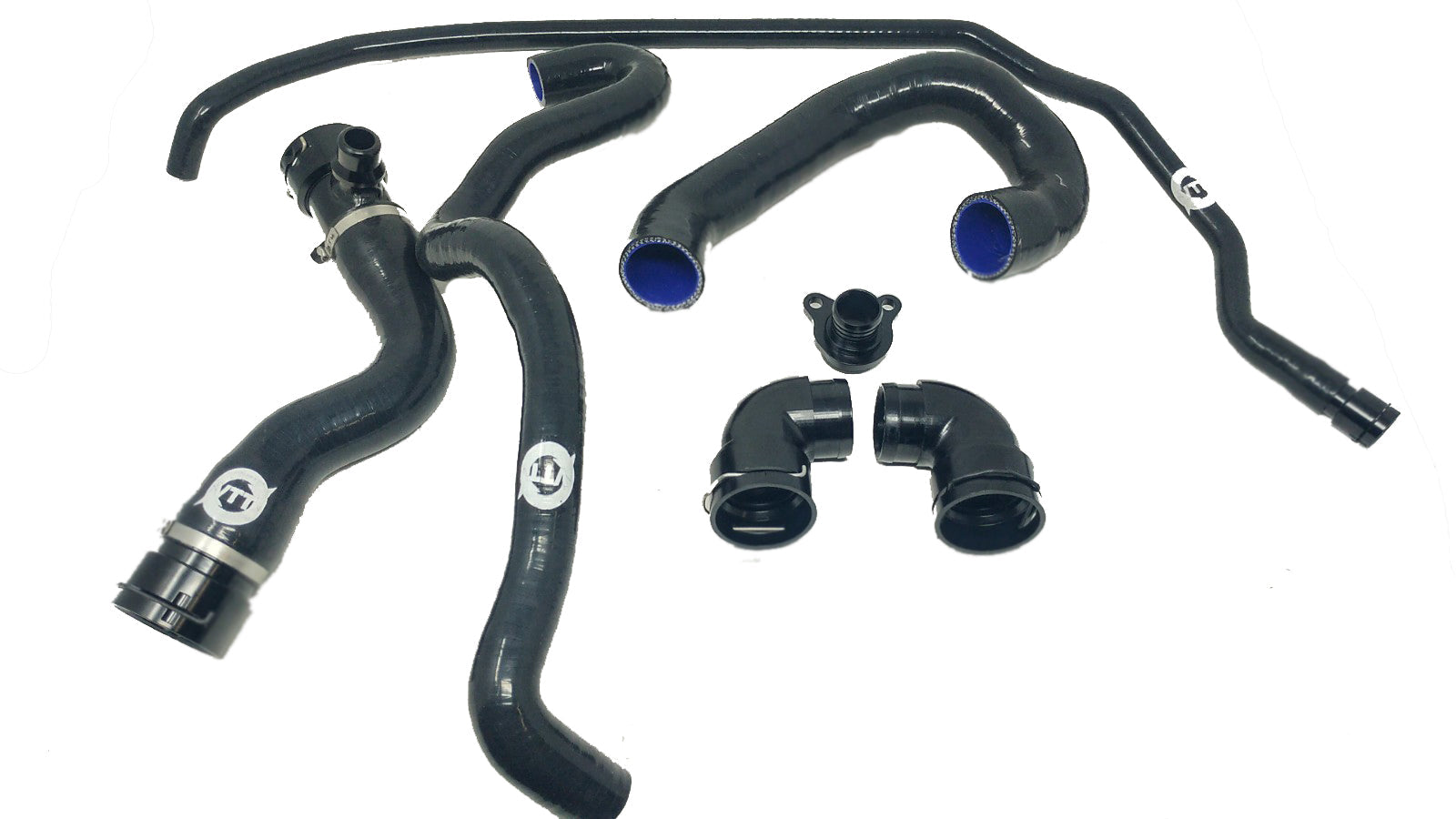

Full hose kit:

• Upper Radiator hose
• Lower Radiator hose
• Cylinder head outlet hose (Mickey Mouse hose, this hose is notorious for breaking when removed)
• Upper vent hose (this hose is also notorious for breaking as stock the center is plastic that crumbles when moved)

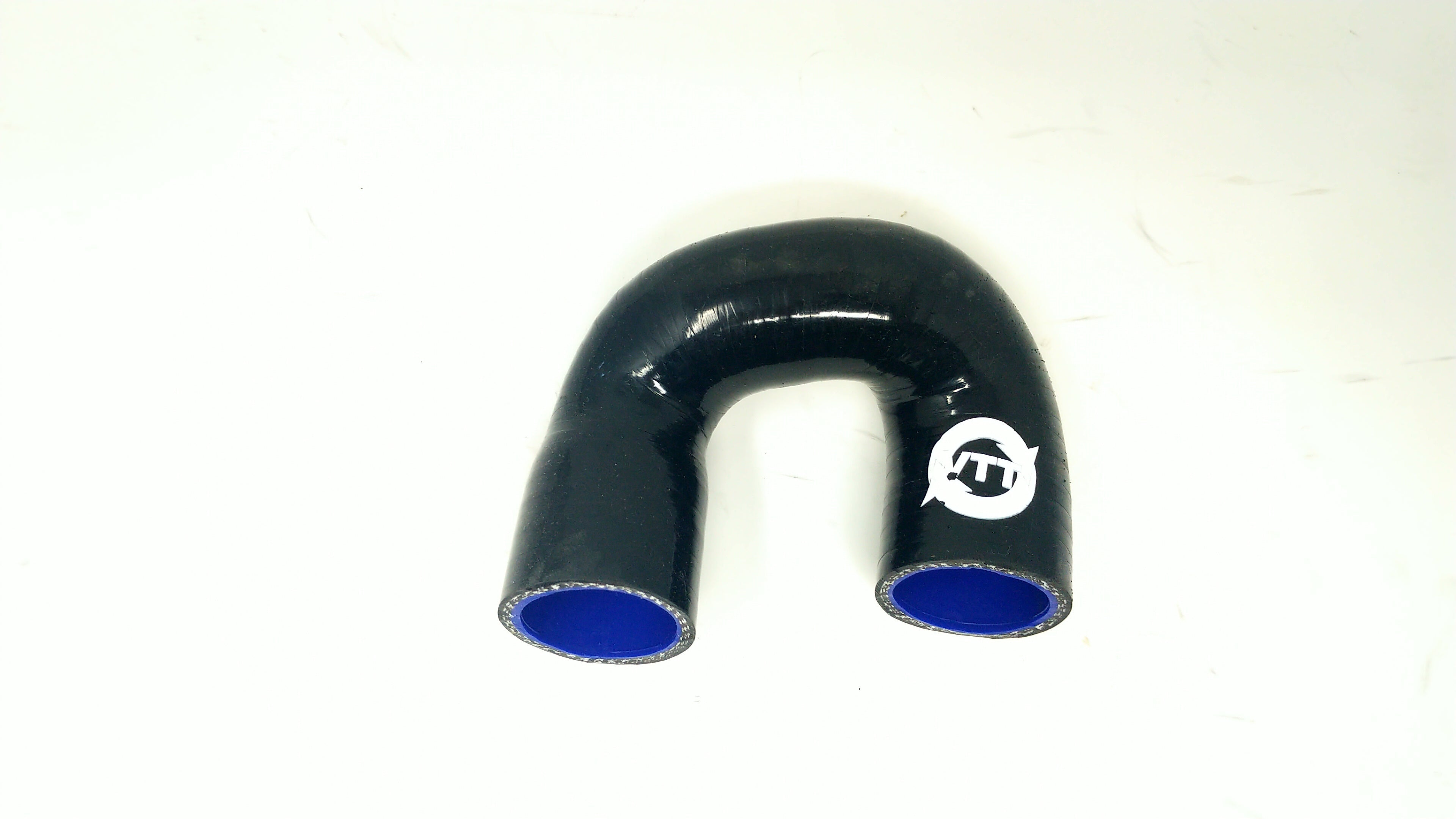

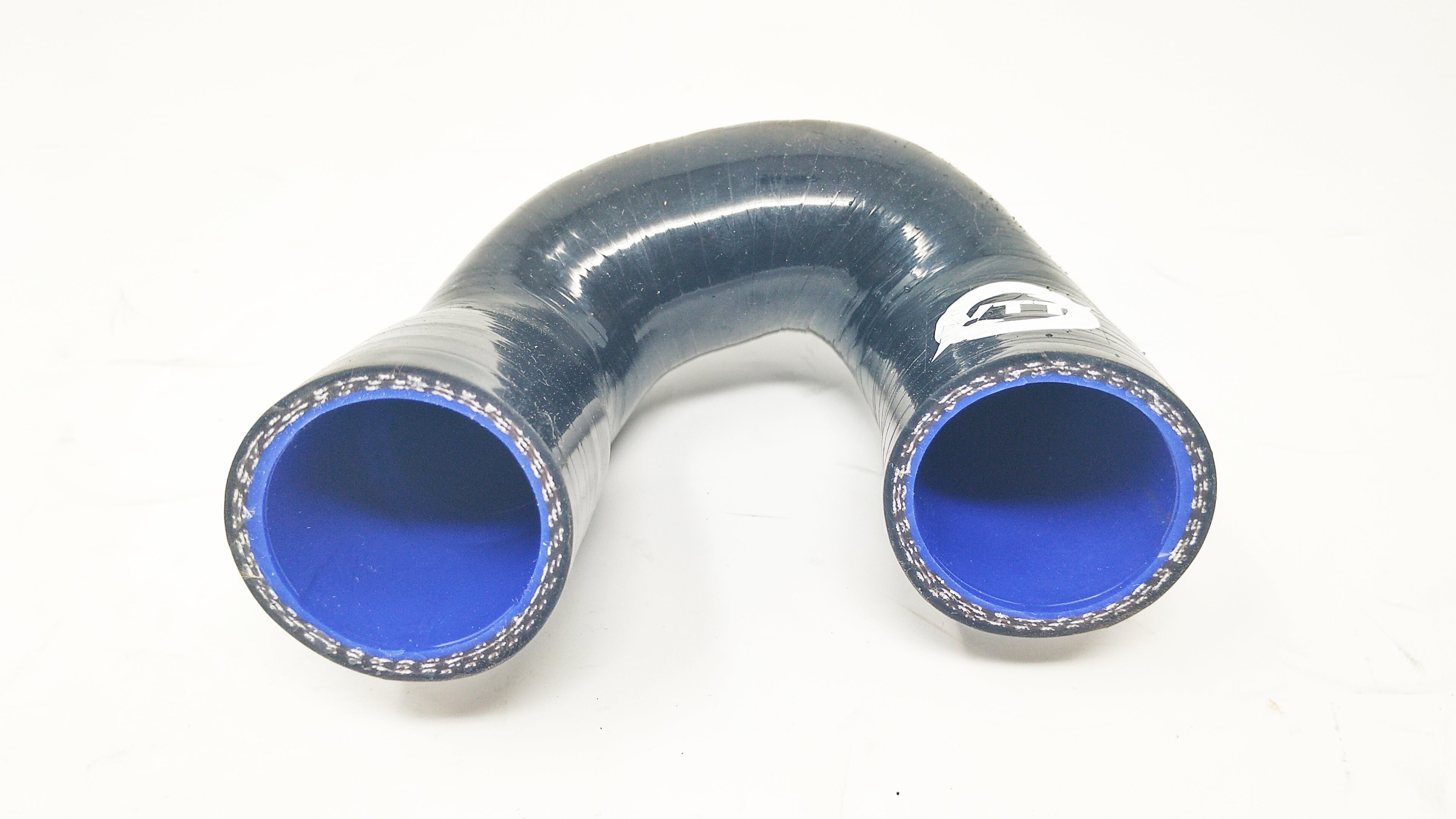

• Water pump inlet hose (Horse Shoe hose)

Radiator Hose Kit:

• Upper Radiator hose
• Lower Radiator hose

Individual hoses:

• Upper Radiator hose
• Lower Radiator hose
• Cylinder head outlet hose (Mickey Mouse hose, this hose is notorious for breaking when removed)
• Upper vent hose (this hose is also notorious for breaking as stock the center is plastic that crumbles when moved)
• Water pump inlet hose (Horse Shoe hose)

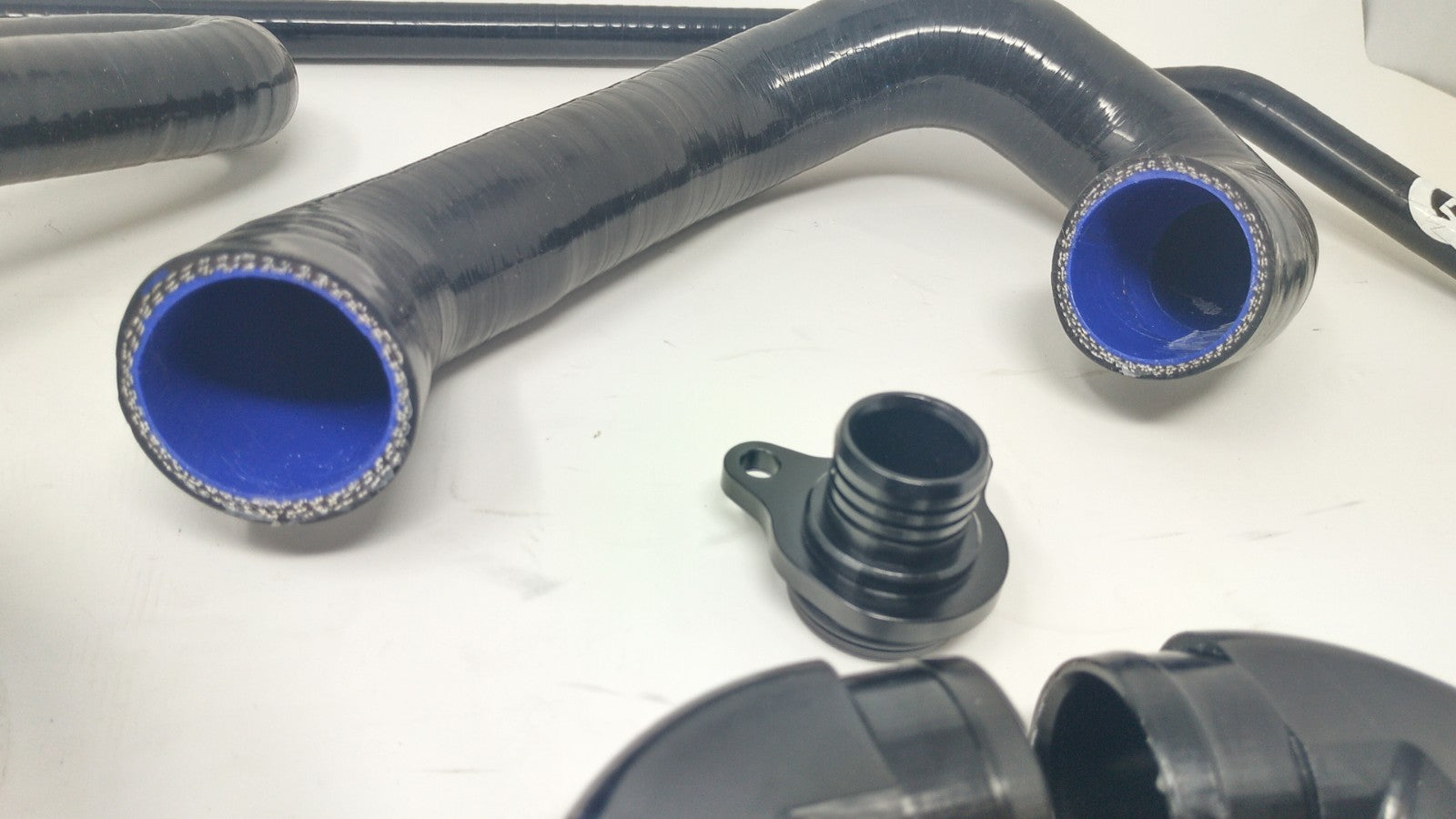

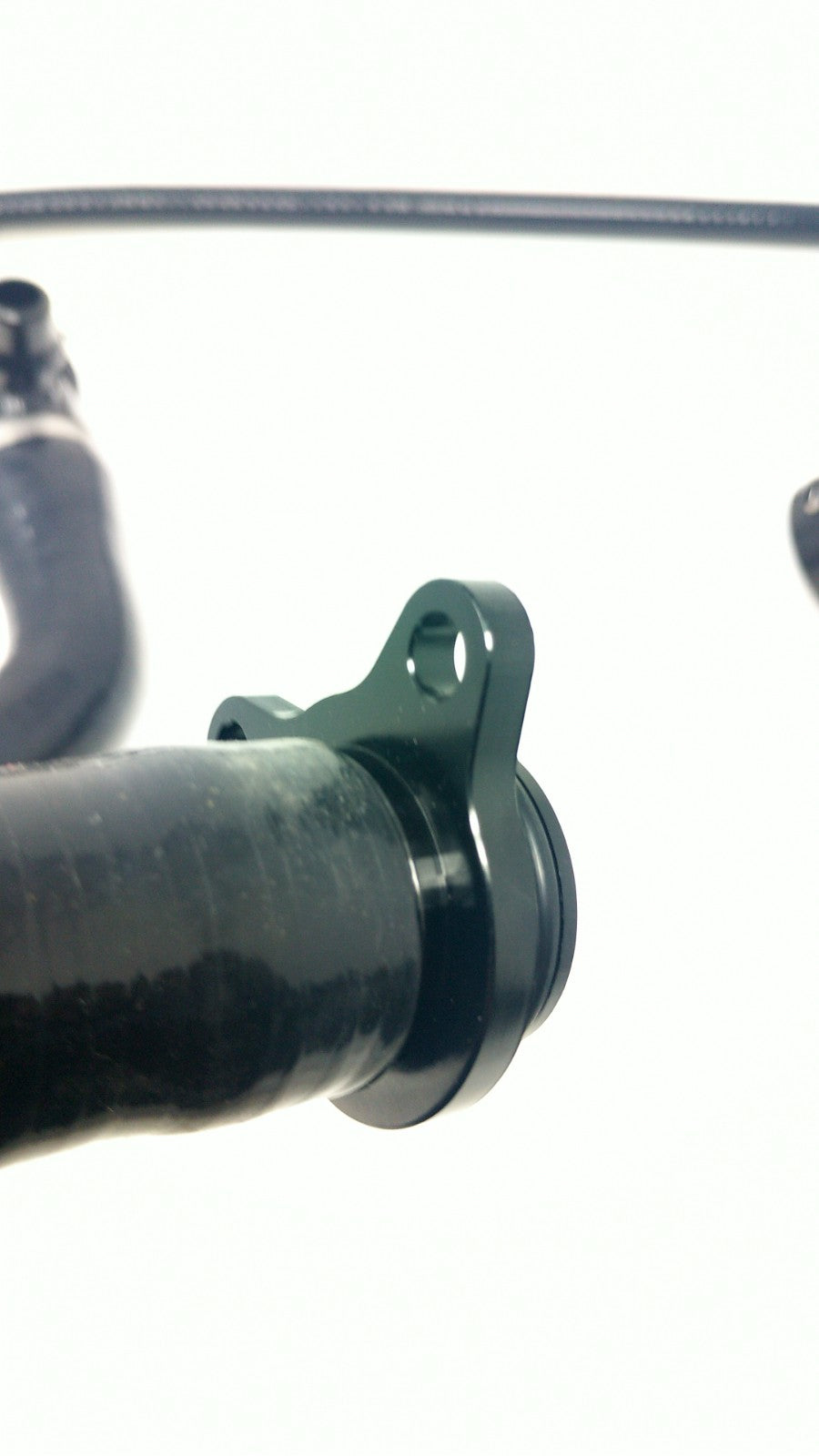

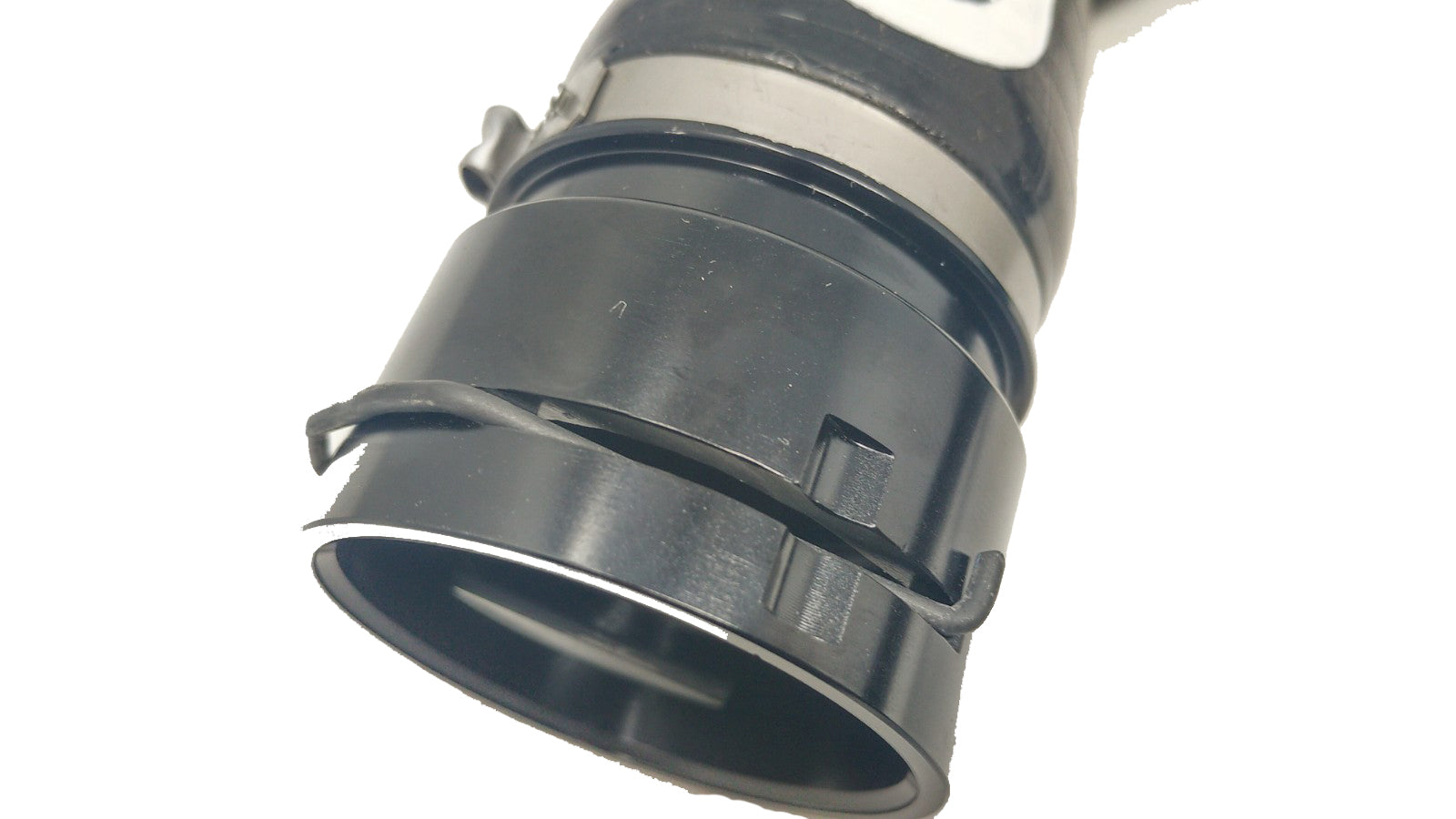

• Billet Cylinder head outlet adapter with O-ring and clamp (no hose)

Fitment is as follows

Upper, Lower, Cylinder head hose (Mickey Mouse)and Vent  Hose, radiator, and complete kits fit Below

• 1' E88   (11/2006 — 10/2013)
• 1' E82   (11/2006 — 10/2013)
• 3' E90   (03/2006 — 09/2008)
• 3' E90 LCI   (07/2007 — 12/2011)
• 3' E91   (03/2006 — 08/2008)
• 3' E91 LCI   (07/2007 — 05/2012)
• 3' E92   (06/2005 — 02/2010)
• 3' E92 LCI   (11/2008 — 06/2013)
• 3' E93   (10/2005 — 02/2010)
• 3' E93 LCI   (11/2008 — 10/2013)
• X1 E84   (04/2009 — 04/2015)
• Z4 E89   (01/2008 — 08/2016)

The horseshoe hose fits all platforms above and the additional platforms below

• 3' E93 LCI   (11/2008 — 10/2013)
• 5' E60 LCI   (04/2006 — 12/2009)
• 5' E61 LCI   (04/2006 — 03/2010)
• X6 E71   (01/2007 — 03/2010)

They may not fit some models, we have not test fit on all models. Does NOT fit most XI models on the lower hoses
