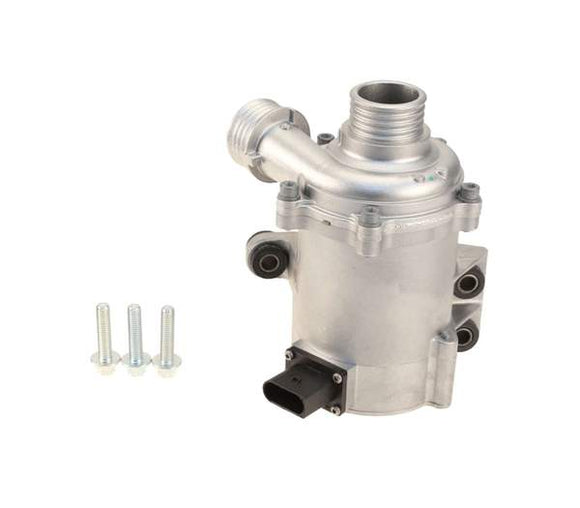

Water Pump - BMW F3x 320i 320i XDrive / E83 X1 SDrive28i

The Graf Water Pump contains no remanufactured parts and is produced using an optimized all metal impeller design to assist in cooling under high RPM, and performance demands.

Selection of raw materials, reliability of machinery and production processes, stringent controls throughout the production process, from melting to fitting, as well as reliability tests performed using equipment able to determine true performance, go to ensure this product is a real guarantee of safety and long life.

The Graf water pump is centrifugal in type and comprises a bladed rotor linked by means of a shaft (which rotates on bearings housed in a support) to the drive gear; the seal between the pump and the motor block is guaranteed by a gasket, while the inside of the pump is guaranteed by a mechanical seal.

Features and Benefits:

• All the component parts fitted are pre-tested to evaluate durability, performance and reliability.
• The bearings undergo a durability test equivalent to nominal lifespan and are then inspected to assess integrity.
• The mechanical seals are tested in extreme coolant temperature conditions according to predefined cycles.
• The shape of the impellers is optimized thanks to the use of prototypes on which flow and performance tests are performed.
• On both the entrainment parts and the bodies, the choice of materials and/or technologies different to original ones is made on the basis of structural and mechanical tests.
• After assembly all the pumps undergo seal tests on units that reject those with leaks above set limits.


  Part #   11-51-7-597-715 / 11 51 7 597 715 / 11517597715
